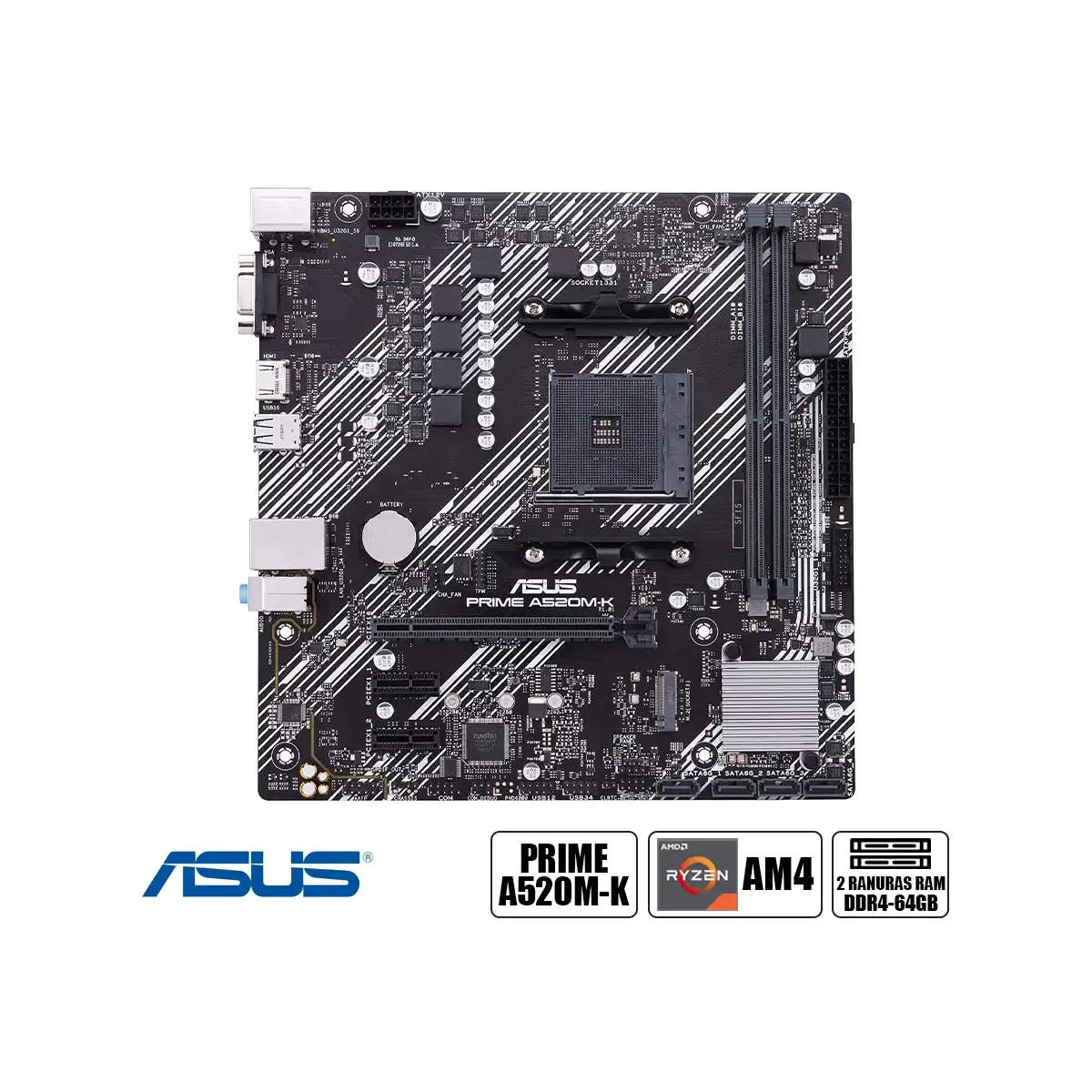

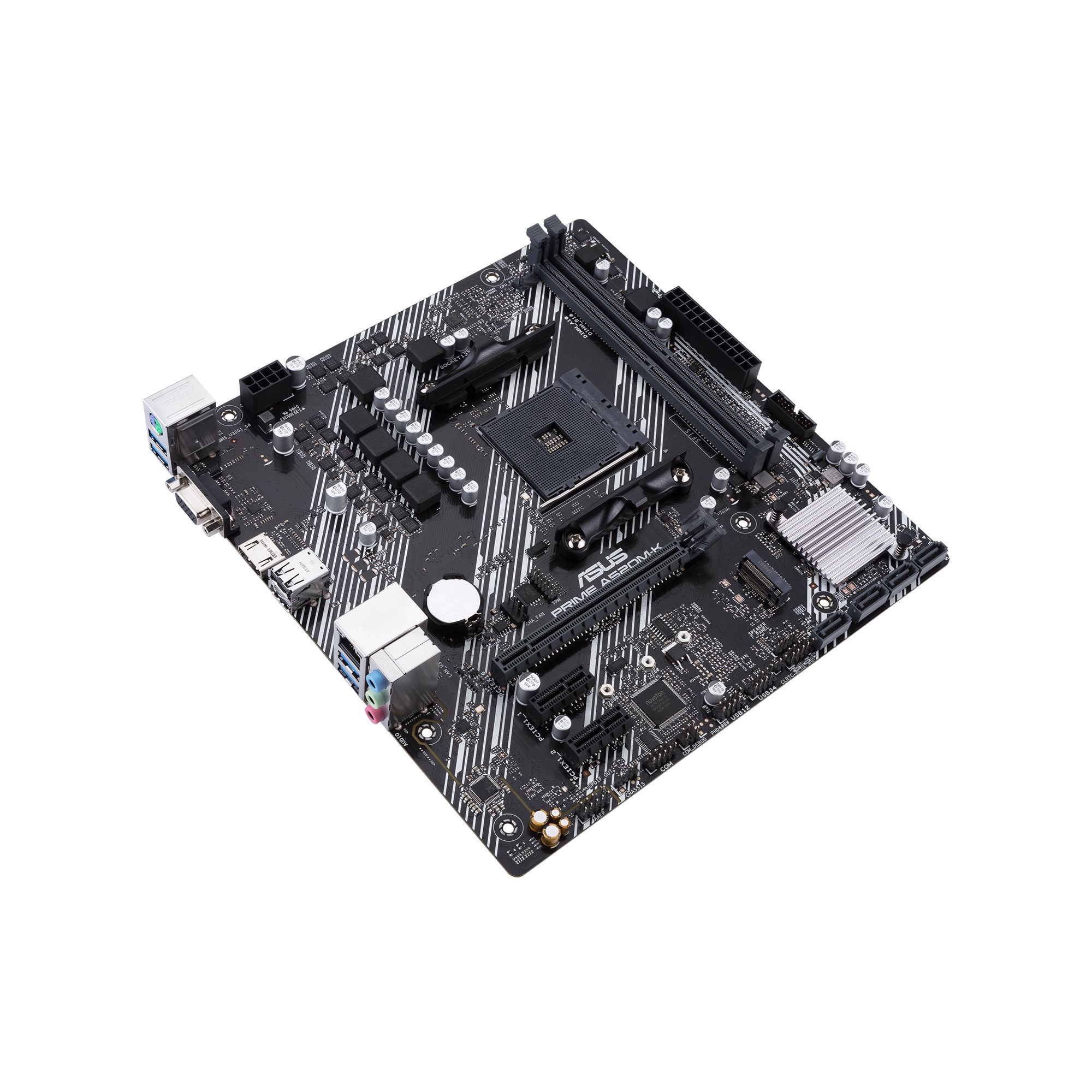

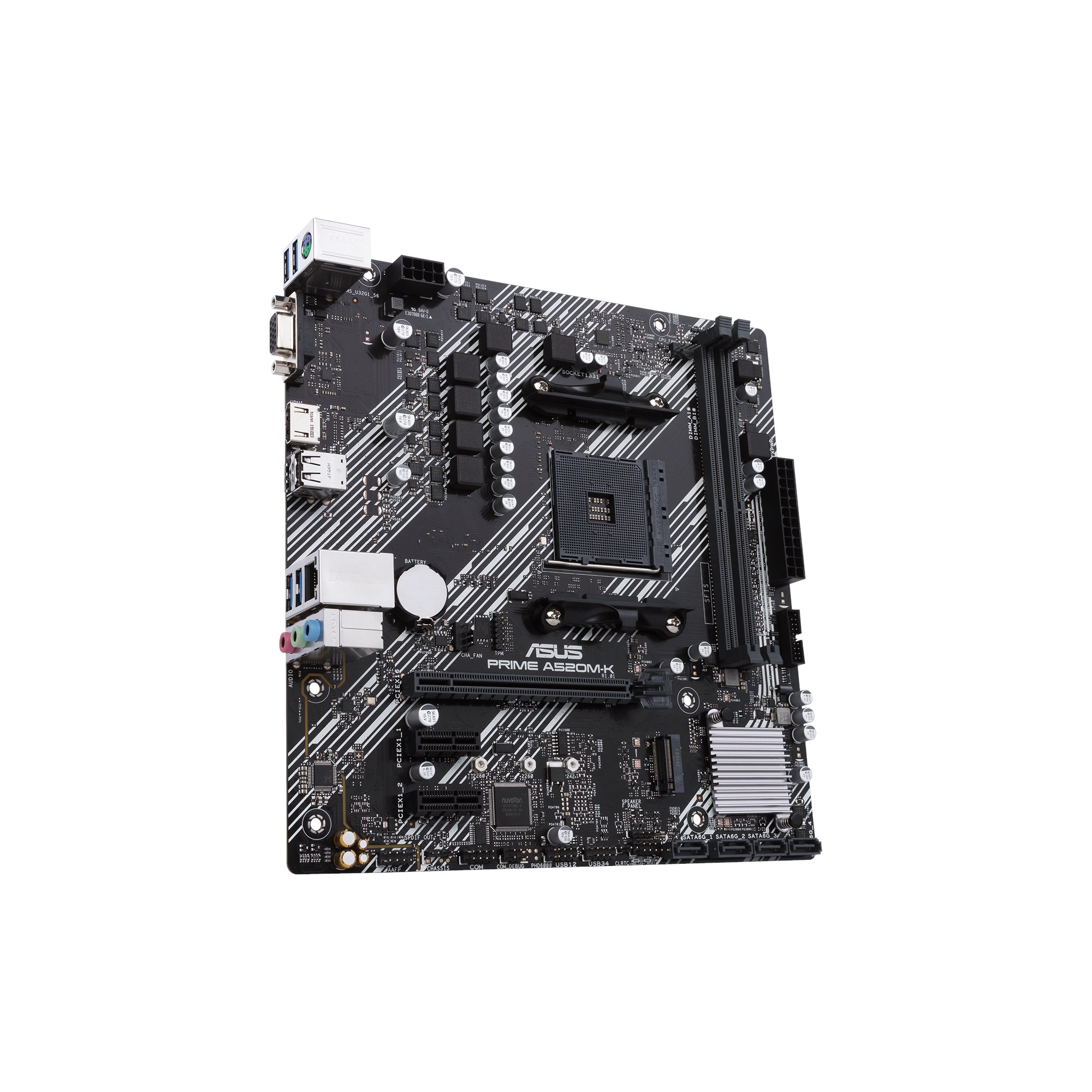

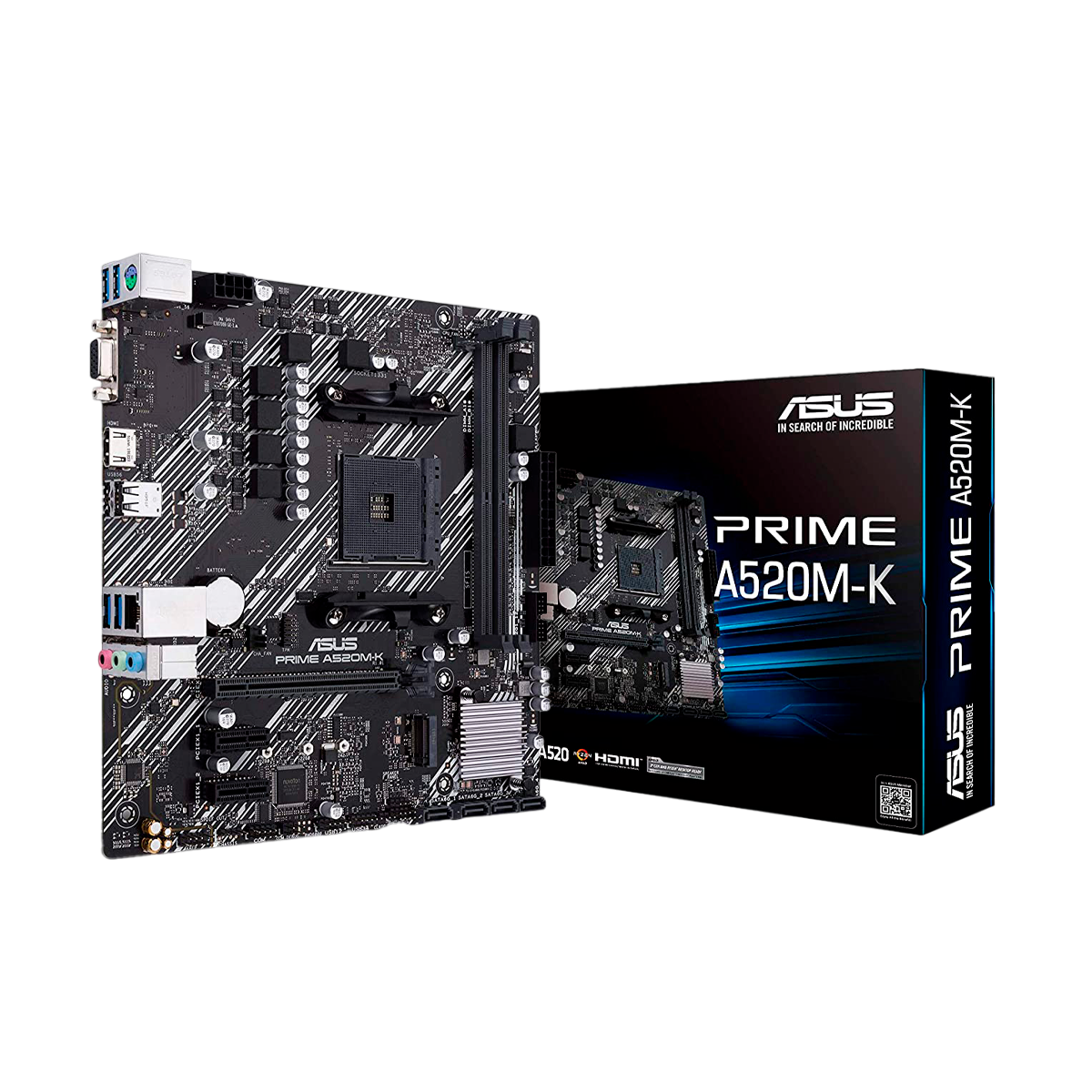

Asus Prime A520M-K/CSM M-ATX Motherboard

SKU: PRIME-A520M-K-CSM
  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹10,000.00.Current price is: ₹4,870.00.

Only 2 left in stock

Only 2 left in stock

Compare
Add to wishlist
4 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Features:

ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

  • AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection



Specifications:



Model PRIME A520M-K/CSM
CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset AMD A520
Memory 2 x DIMM, Max. 64GB, DDR4

4866(O.C)/4600(O.C)/4466(O.C.)/

4400(O.C)/4333(O.C.)/4266(O.C.)

/4200(O.C.)/4133(O.C.)/4000(O.C.)

/3866(O.C.)/3733(O.C.)/3600(O.C.)/

3466(O.C.)/3400(O.C.)/3333(O.C.)/

3200/3000/2933/2800/2666/2400/

2133 MHz Un-buffered Memory

Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphic 1 x D-Sub
1 x HDMI 2.1(4K@60HZ)
Expansion Slots AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD A520 Chipset

2 x PCIe 3.0 x1
Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

AMD A520 Chipset :

4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

  • Audio Shielding
    Dedicated audio PCB layers
USB Ports Rear USB Port ( Total 6 )

  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • 2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

  • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 4 x USB 2.0 port(s)(4 x Type-A)
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design

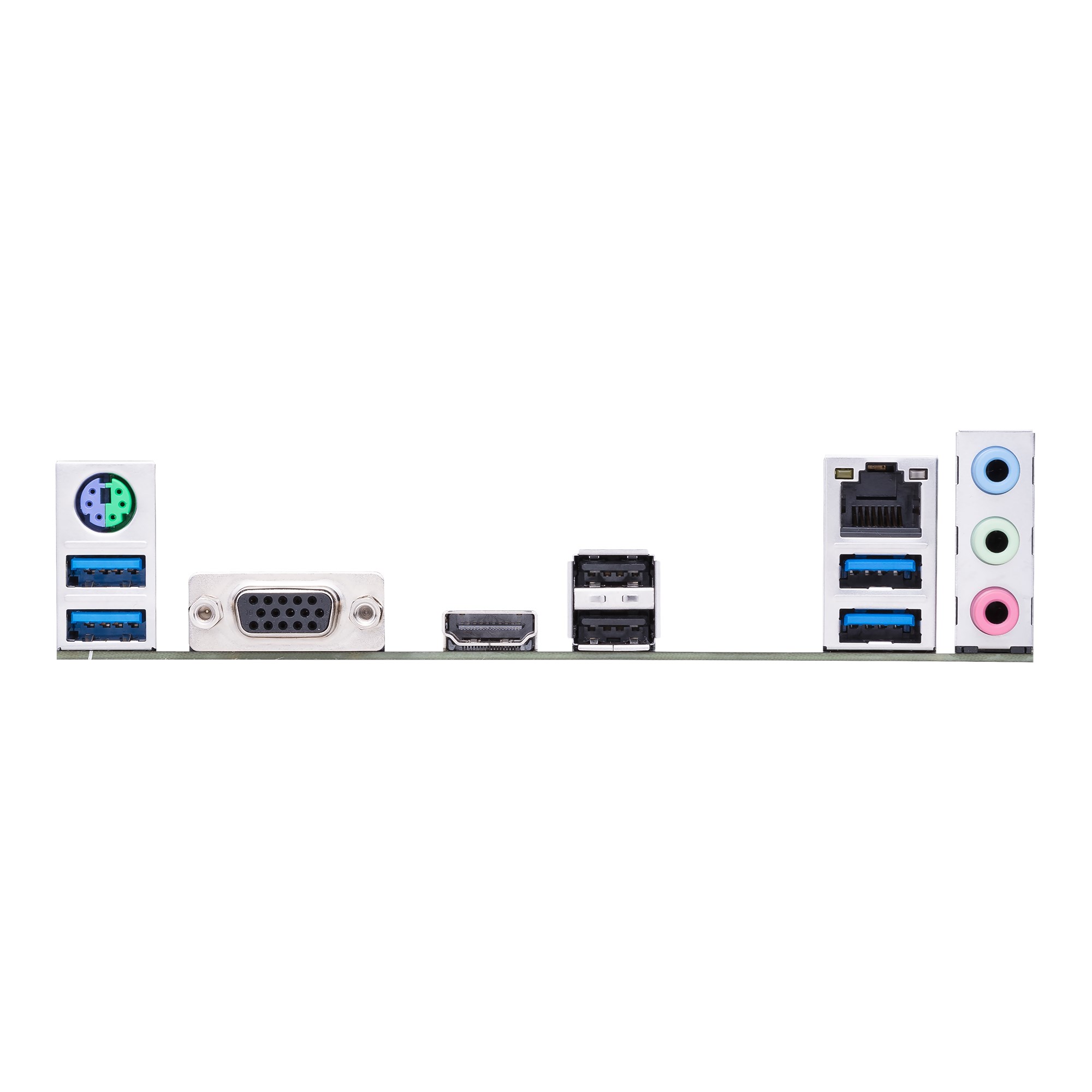

Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.2 Gen 1 (blue) Type-A
  • 2 x USB 2.0
  • 3 x Audio jack(s)
Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x SPI TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x COM port header
  • 1 x Speaker connector

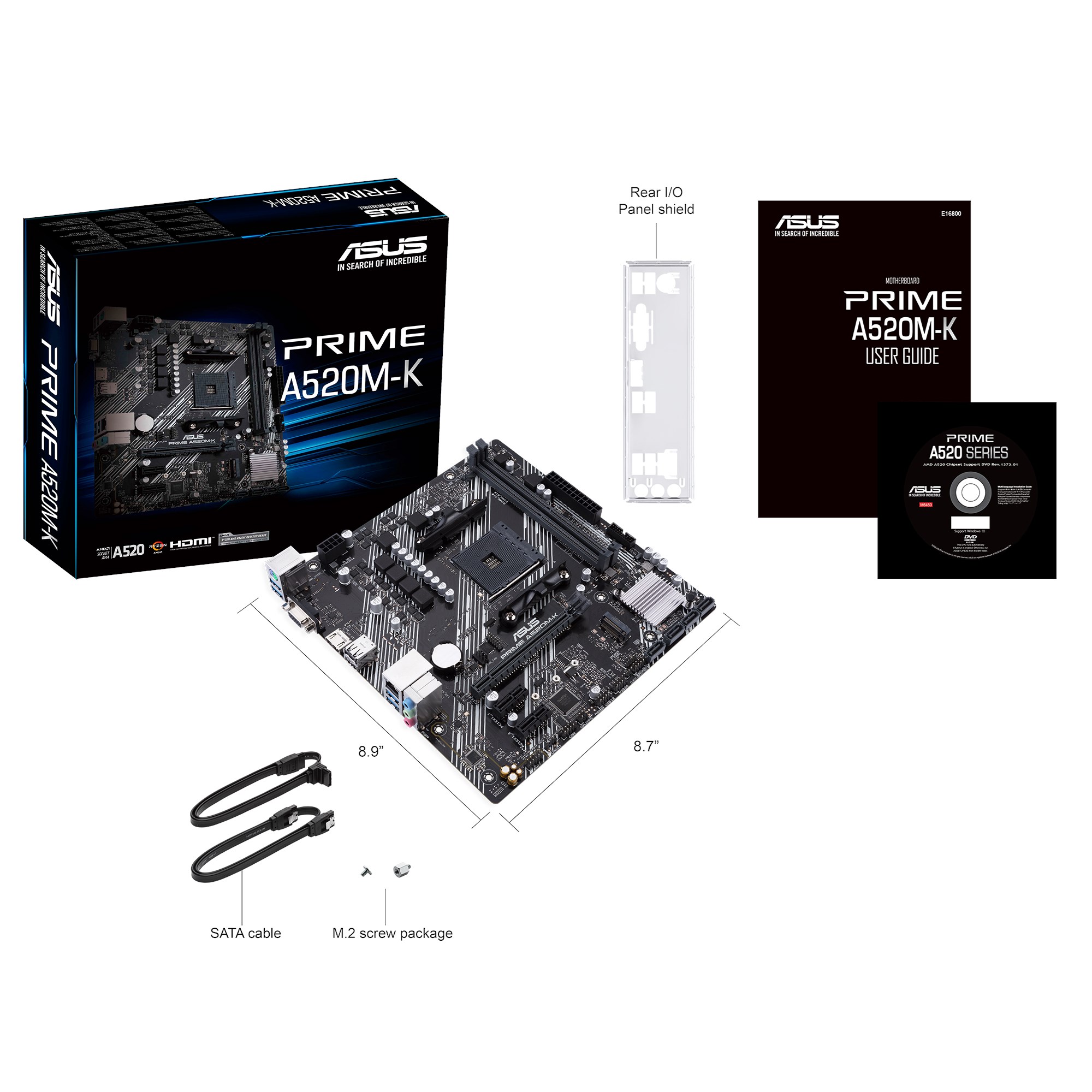

Accessories User´s manual
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Warranty 3 Years

Specification

Overview

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

Processor

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

Display

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

RAM

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

Storage

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

Video Card

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

Connectivity

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

Features

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

Battery

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm

General

Weight 0.794 kg
Dimensions 27.2 × 5.9 × 26.8 cm
