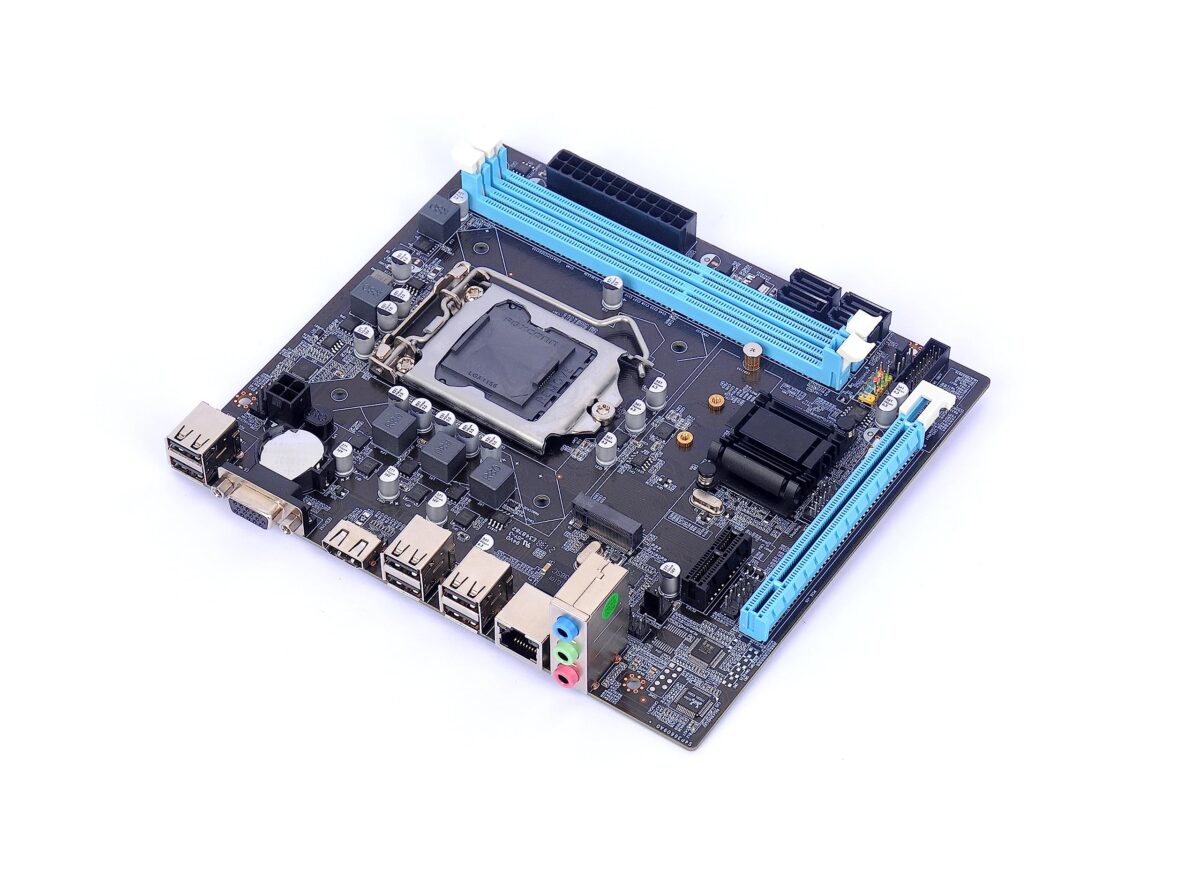

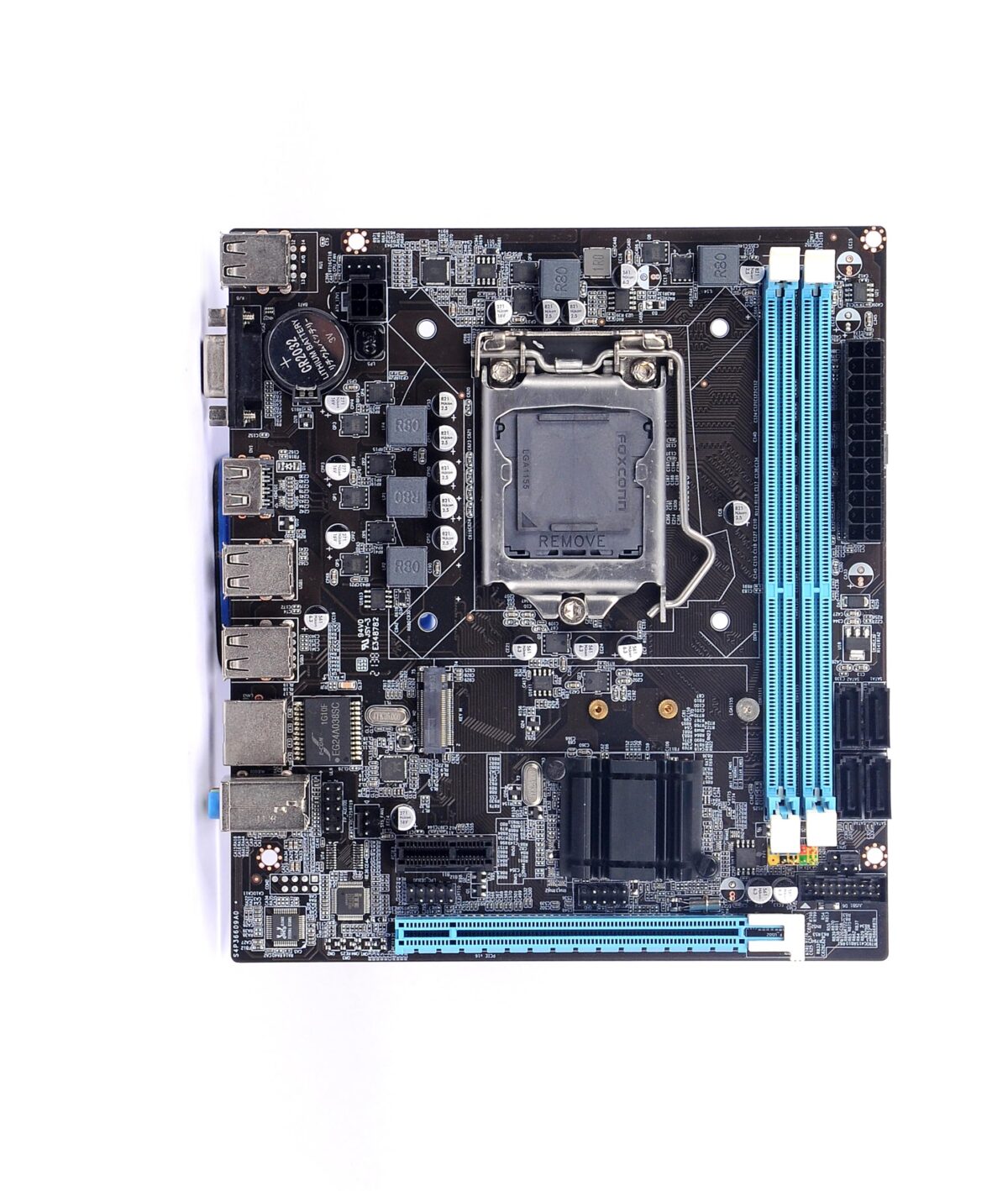

EVM H61FHL H61 Motherboard with NVMe Slot (LGA1155)

Processor Support

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7

/Core™ i5/ Core™i3/Pentium/Celeron Processors

Supports Intel® 22 nm CPU

Supports Intel® 32 nm CPU

Supports Intel® Turbo Boost Technology 2 O

Chipset

Intel® H61 Chipset

Memory Support

DDR3 1066/1333/1600 MHZ SDRAM

2*DDR3 DIMMs (240pin/ 1.5V/ 1.35V)

(For more information on compatible components, please
check with manufacturer}

LAN

Supports Realtek®8105E 10/100 Mbps

Audio

Chip integrated by Realtek®661 Flexible 6-channel audio
with jack sensing Compliant with Vista Premium

Storage

4 * SATA 3Gb/s port(s},

Usb

8 * USB 2.0 ports (6 at back panel black, 2 at
mid-board) 1* 19-Pin USB Pin header , for 2*USB Ports

BACKPANEL

1* VGA port 1* HDMI port

6 * USB 2.0 Ports 1 • LAN jack 3

3 • flexible audio jacks

On-Board Pin headers Connectors

1• use 2.0 Pin headers, 1• 19-Pin USB Pin headers

1• F Panel Pin headers, 1* F Audio Pin headers

1•Auto_PWR Pin headers,   1* DEBUG Pin headers

Slots

1PCI Expre11x16 slot

1PCIExpreaa x1 slot

Form Factor

Micro-ATX (18c:m X  17 cm)

Mounting

e mounting holes
