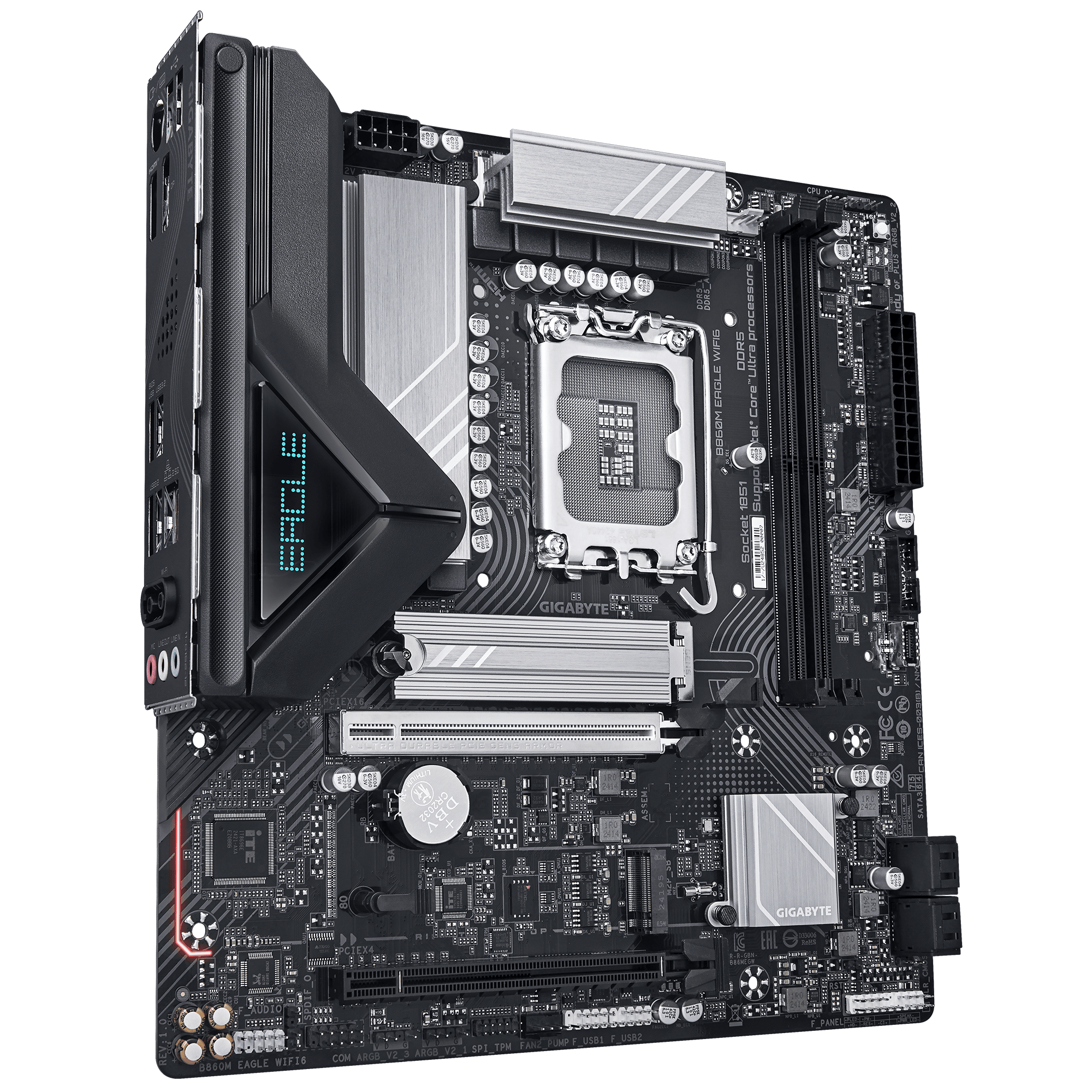

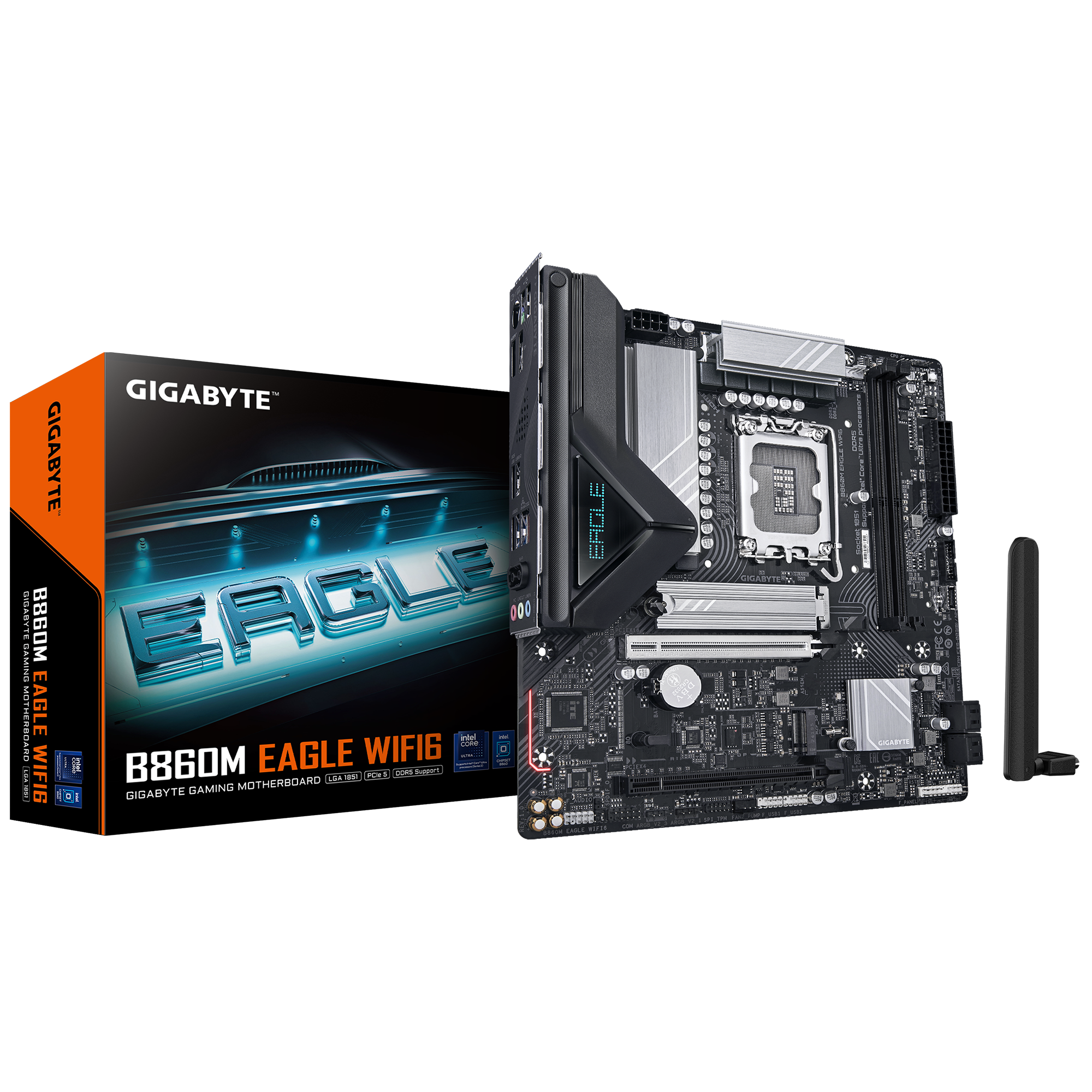

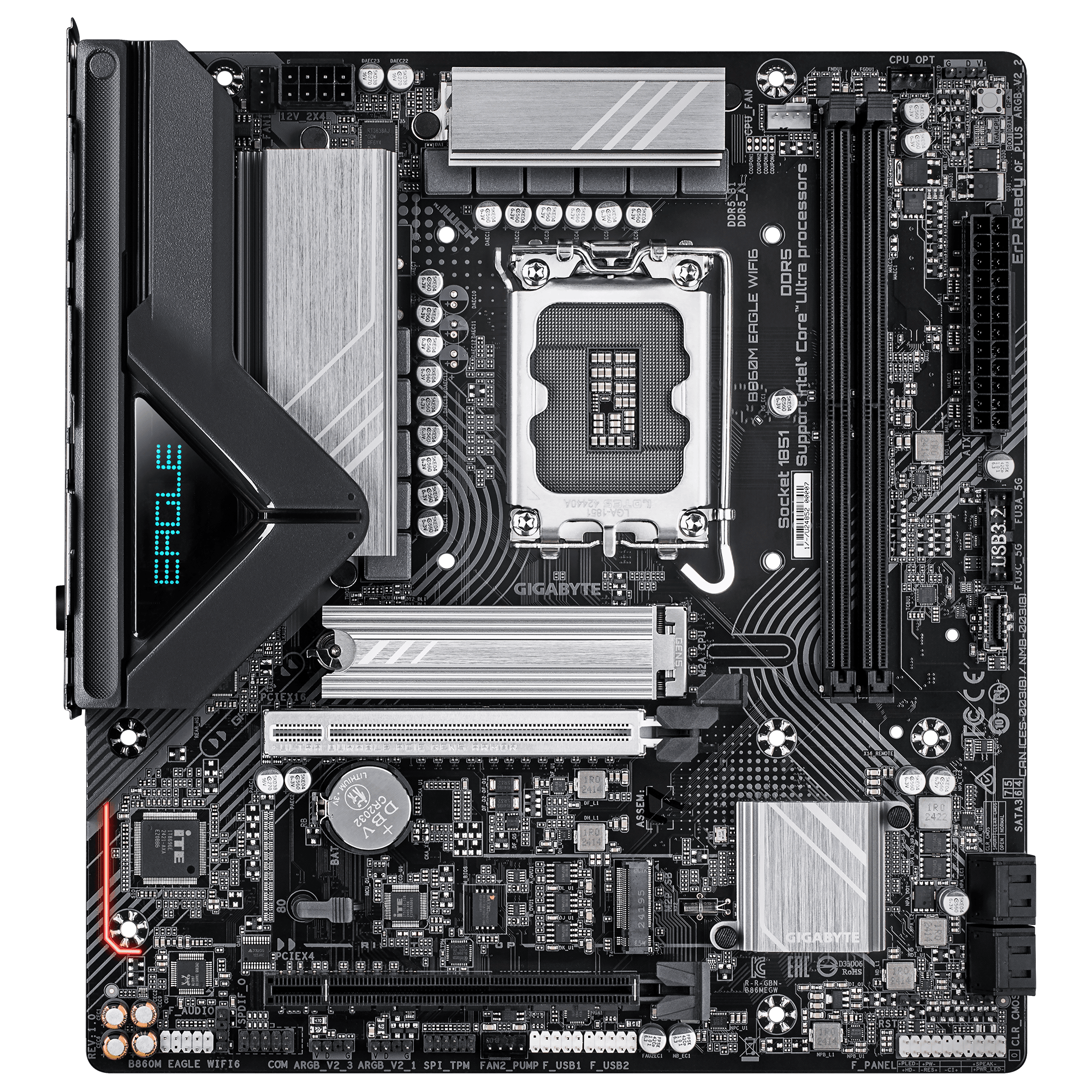

Gigabyte B860M EAGLE WIFI6 LGA 1851 mATX Motherboard

SKU: B860M-EAGLE-WIFI6
  • Supports Intel® Core™ Ultra processors (Series 2)
  • Digital 6+1+2 phases VRM solution
  • Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
  • D5 Bionic Corsa for Infinite Memory Performance

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹22,800.00.Current price is: ₹14,850.00.

Only 1 left in stock

Only 1 left in stock

Compare
Add to wishlist
12 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 – B860 Chipset – 2x M.2, 2x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6 + BT

Feature

  • Supports Intel® Core™ Ultra processors (Series 2)
  • Digital 6+1+2 phases VRM solution
  • Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking : 2.5GbE LAN Wi-Fi 6
  • Extended Connectivity : HDMI, DisplayPort

Memory Infinite Memory Performance

Gigabyte EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Effortlessly Boost Your DDR5 Memory Speed

DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.

Boost instantly

Instant memory performance uplift

Hands-off memory tuning

Eliminate manual entry of complex memory settings such as clock, voltage, and timings.

Hassle-free overclocking

Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies.

Incorporated database

Built-in library of pre-optimized configurations for diverse memory chip suppliers

Boost DDR5 Memory Performance with Optimized Tuning:

Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance.

Customizable SPD Profiles or retrieve from database:

Create and transfer two custom SPD profiles between systems.

Quick Performance Simulator:

Rapidly assess potential memory performance by entering clock speeds and timing parameters.

Profile Management:

Store and retrieve memory configurations for online sharing.

Unlock non-overclockable DDR5 Potential:

Enhance clock speeds of non-overclockable DDR5 modules.

Instant Reset:

Revert memory settings with a single click.

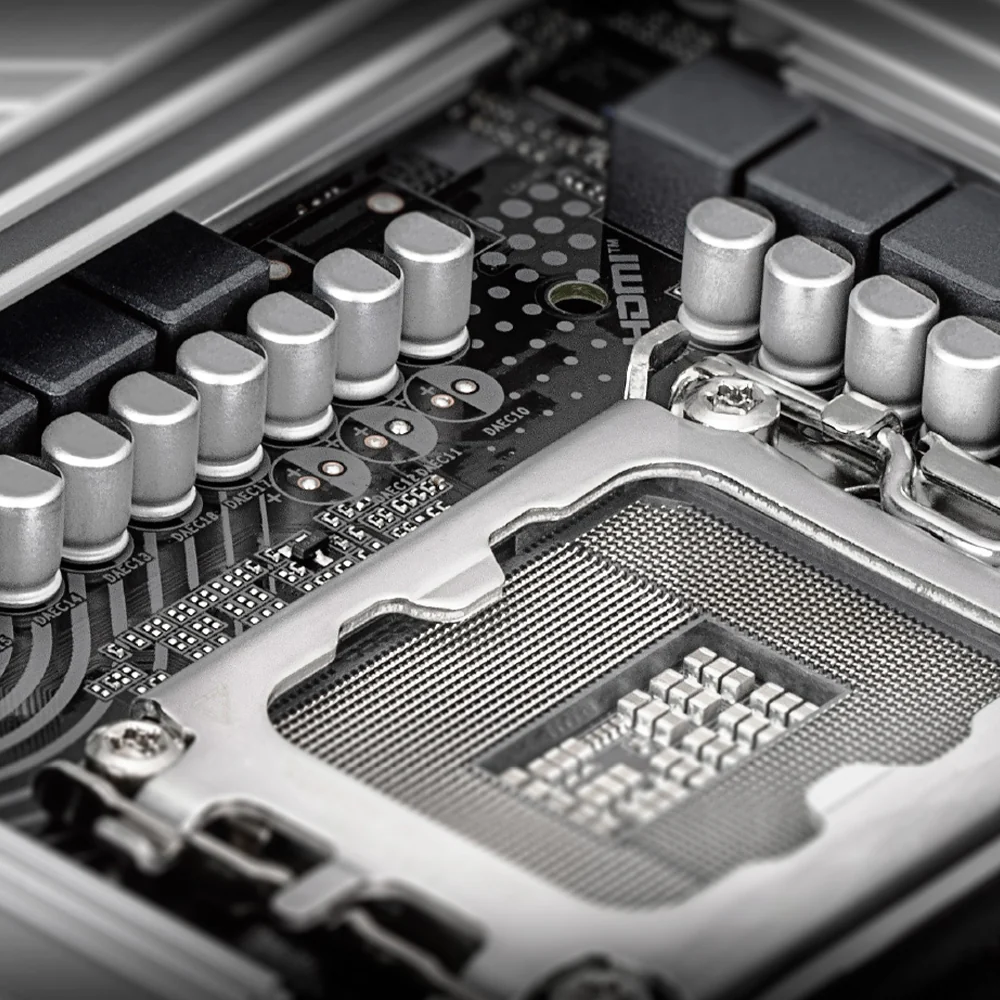

Digital VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

6 VCORE Phases Ppak 50A

Unlock the full power of your multi-core CPU for unmatched performance.

VCORE Phases Ppak 50A

Unlock the full power of your multi-core CPU for unmatched performance.

1 VCCGT Phase Ppak 50A

Optimized for integrated GPU performance and memory management within the CPU.

2 VCCSA Phases Ppak 50A

Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling Comprehensive Thermal

EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Tailored Computing Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

UC BIOS

Restructured with user-centered and intuitive performance adjustment mechanisms.

Multi-Theme

Multiple BIOS skin with newly exclusive grayscale mode

Spotlight your flair

Liberate your imagination using GCC’s versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

Model Number B860M-EAGLE-WIFI6
CPU LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
Chipset Intel ® B860 Express Chipset
Memory Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module Realtek® Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

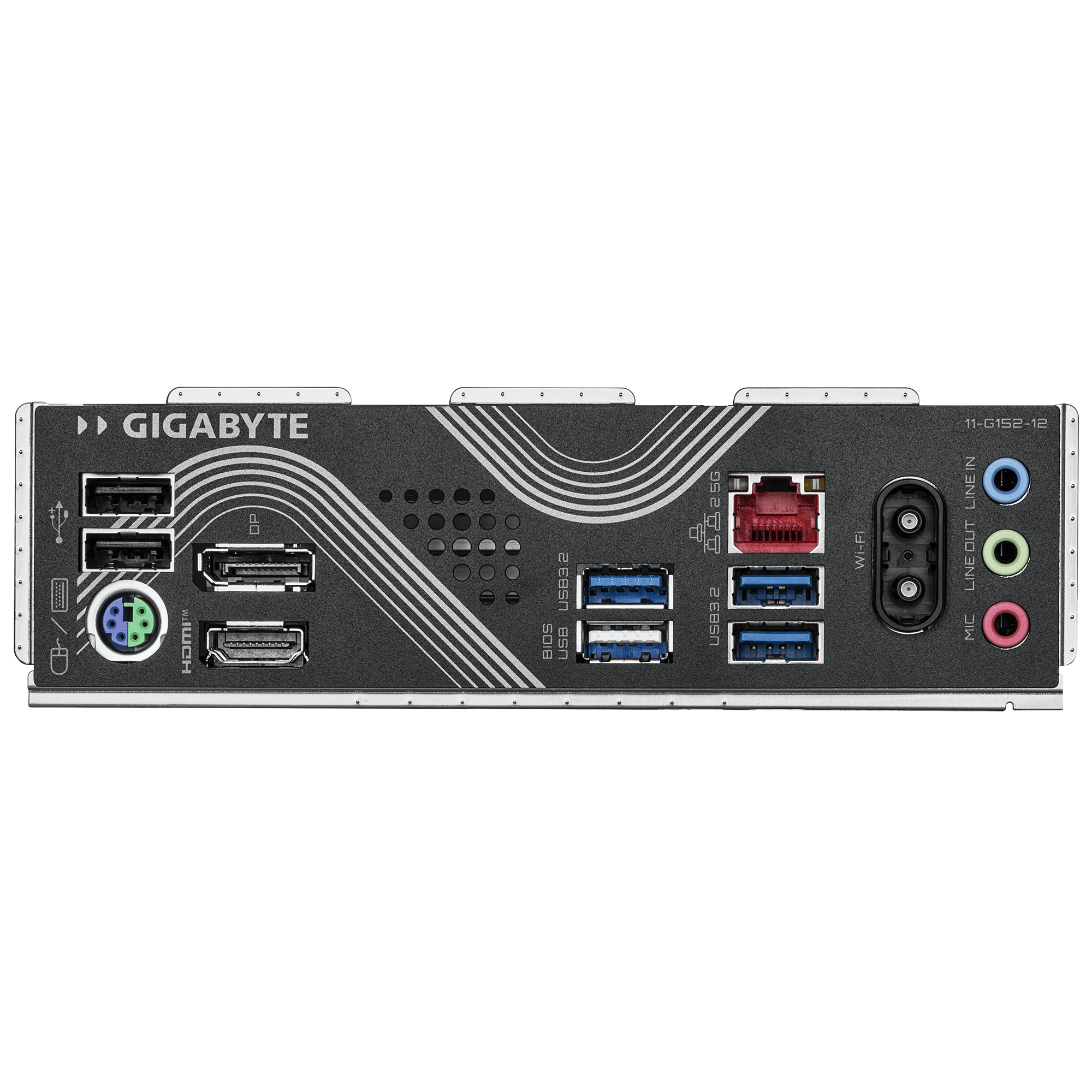

Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port* 1 x DisplayPort* 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU.
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11.
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

Specification

Overview

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

Processor

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

Display

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

RAM

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

Storage

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

Video Card

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

Connectivity

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

Features

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

Battery

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm

General

Weight 1.126 kg
Dimensions 27.5 × 7.1 × 26.8 cm
